Comprehensive range of mounting solutions for monitors & TVs

Made of 100% recycled iron, our wide range of durable brackets provide exceptional strength to accommodate most sizes and configuration requirements of flat panel displays such as LED/ LCD monitors, TVs, tablets (iPad, Kindle, etc), laptops and computers.



We also offer bracket installation services to help you mount your bracket onto the wall or ceiling.



Download bracket catalog

download catalog
LED/ LCD MONITOR Wall-mounted Brackets Top of page Top
Brackets without arm (fixed angle* or with monitor rotation / pan/ tilt)
Lines FC-8888SB Lines FC-8888SB*

LCD size: up to 27"

Max load: 30kg

VESA: 75x75, 100x100mm

Fixed angle, slim profile, monitor stays close to the wall

Lines FC-8888S Lines FC-8888S

LCD size: up to 27"

Max load: 15kg

VESA: 75x75, 100x100mm

180 deg L-R, Up-down swivel

270 degrees monitor rotation



Lines FC-A800 Lines FC-A800

LCD size: up to 27"

Max load: 15kg

VESA: 75x75, 100x100mm

360 deg monitor rotation


Swivel arm with monitor pan/ tilt features
Lines FC-A811 Lines FC-A811

LCD size: up to 27"

Max load: 15kg

VESA: 75x75, 100x100mm

AR210 wall bracket for LCD monitors up to 24" Lines AR210

LCD size: up to 27"

Max load: 10kg

VESA: 75x75, 100x100mm

Supports under 24" monitor

Lines FC-8888WP Lines FC-8888WP

LCD size: up to 27"

Max load: 10kg

VESA: 75x75, 100x100mm

ATW20 wall bracket for LCD monitors up to 24" Lines ATW20

LCD size: up to 27"

Max load: 10kg

VESA: 75x75, 100x100mm

ATW40 wall bracket for 2 LCD monitors up to 24" Lines ATW40

Supports 2 monitors

LCD size: up to 27"

Max load: 2x10kg

VESA: 75x75, 100x100mm


Sit/ stand wall-mounted computer workstation with integrated LCD monitor and keyboard tray
Lines ORW10 Sit-stand computer workstation Lines ORW10

Sit-stand computer workstation

LCD size: up to 27"

360deg monitor rotation

90 deg swivel of workstation

Height-adjustable monitor

Keyboard tray can be folded up

Cable management

Max monitor load: 8kg

VESA: 75x75, 100x100mm


LED/ LCD Monitor Table Stand Top of page Top
1-Monitor Table Stand
Lines HA741 LCD table stand mount for 1 monitor Lines HA741

LCD size: up to 27"

Max load: 8kg

VESA: 75x75, 100x100,

Height adjustment: 13cm

Swivel, tilt, rotate (pivot) features

Lines TS021 LCD table stand mount for 1 monitor Lines TS021

LCD size: up to 37"

Max load: 15kg

VESA: 75x75, 100x100, 200x100mm

Tilt (+/-15°), Rotate (pivot) 90°



Lines FC-A500T Lines FC-A500T

360 deg swivel, monitor can be angled upwards for touchscreen

LCD size: up to 27"

Max load: 20kg

VESA: 75x75, 100x100mm


2-Monitor Table Stand
Lines FC-822 Lines FC-822

Table stand for 2 monitors

LCD size: up to 27"

Max load: 10kg x 2

VESA: 75x75, 100x100mm

Lines TS-042 Lines TS042

Table stand for 2 monitors

LCD size: 24-32"

Max load: 12kg x 2

VESA mounting: 75x75, 100x100, 200x100mm

Lines FC-862 dual-monitor table stand Lines FC-862

Table stand for 2 monitors

LCD size: up to 24"

Max load: 10kg x 2

VESA: 75x75, 100x100mm

Lines TS-742E Lines TS-742E

Table stand for 2 monitors

LCD size: up to 24"

Max load: 12kg x 2

VESA mounting : 75x75, 100x100mm

Lines TS-732 Lines TS732

Table stand for 2 monitors

LCD size: 24-32"

Max load: 15kg x 2

VESA mounting : 75x75, 100x100, 200x100mm


3, 4, 6-Monitor Table Stand
Lines TS743 LCD table stand mount for 3 monitors Lines TS743A

Table stand for 3 monitors

LCD size: up to 24"

Max load: 8kg x 3

VESA: 75x75, 100x100mm

Lines TS744 LCD 4 monitors table stand Lines TS744

Table stand for 4 monitors

LCD size: up to 24"

Max load: 8kg x 4

VESA: 75x75, 100x100mm

Lines TS-734 Lines TS734

Table stand for 4 monitors

LCD size: 24-32"

Max load: 12kg x 4

VESA mounting : 75x75, 100x100, 200x100mm

Lines TS746 LCD table stand mount for 6 monitors Lines TS746A

Table stand for 6 monitors

LCD size: up to 24"

Max load: 8kg x 6

VESA: 75x75, 100x100mm

LED/ LCD Monitor Table C-Clamp Top of page Top
1-Monitor Table C-Clamp
Lines FC-8888IP Lines FC-8888IP

LCD size: up to 27"

Max load: 10kg

VESA: 75x75, 100x100mm

Lines TC-210 Lines TC-210

LCD size: up to 27"

Max load: 8kg

VESA: 75x75, 100x100mm

Lines A851 C-clamp monitor table arm Lines A-851

LCD size: up to 27"

Loading capacity: 3 - 8kg
VESA 75x75, 100x100mm
360 deg monitor rotation
vertical arm: +60 deg / -30 deg

Lines HT-ATC20 Single-LCD monitor table clamp Lines HT-ATC20

LCD size: up to 27"

Max load: 10kg

VESA: 75x75, 100x100mm

2, 4-Monitor Table C-Clamp
Lines TC-212 Dual-LCD monitor table clamp Lines TC-212

Dual-monitors table clamp with two-sections arm

LCD size: up to 27"

Max load: 6kg x 2

VESA: 75x75, 100x100mm

Lines FC-A820 Lines FC-A820

Dual-monitors table clamp with two-sections arm

LCD size: up to 27"

Max load: 10kg x 2

VESA: 75x75, 100x100mm

Lines HT-ATC40 Dual-LCD monitor table clamp Lines HT-ATC40

Dual-monitors table clamp with two-sections arm

LCD size: up to 27"

Max load: 10kg x 2

VESA: 75x75, 100x100mm

Lines FC-A840 Lines FC-A840

Quad-monitor table clamp with two-sections arm

LCD size: up to 27"

Max load: 10kg x 4

VESA: 75x75, 100x100mm

LED/ LCD Monitor Desk Hole Top of page Top
Lines FC-8888HP Lines FC-8888HP

Single monitor desk hole mount

LCD size: up to 27"

Max load: 10kg

VESA: 75x75, 100x100mm

Lines TI012 monitor clamp for 2 monitors Lines TI012

2-monitor desk hole mount

LCD size: up to 27"

Max load: 8kg x 2

VESA: 75x75, 100x100mm

Lines TI212 monitor clamp for 2 monitors Lines TI212

2-monitor desk hole mount

LCD size: up to 27"

Max load: 6kg x 2

VESA: 75x75, 100x100mm

Lines ATI40 monitor clamp for 2 monitors Lines ATI40

2-monitor desk hole mount

LCD size: up to 27"

Max load: 10kg x 2

VESA: 75x75, 100x100mm

Lines TI744 monitor clamp for 4 monitors Lines TI744

4-monitor desk hole mount

LCD size: up to 24"

Max load: 8kg x 4

VESA: 75x75, 100x100mm

Lines TI7446A monitor clamp for 6 monitors Lines TI746A

6-monitor desk hole mount

LCD size: up to 24"

Max load: 6kg x 6

VESA: 75x75, 100x100mm

LED/ LCD Monitor Pole Mount Top of page Top
Lines FC-8888SD LCD Pole mount Lines FC-8888SD

LCD size: up to 27"

Max load: 15kg

VESA: 75x75, 100x100mm

Lines FC-8888PP pole mount Lines FC-8888PP

LCD size: up to 27"

Max load: 10kg

VESA: 75x75, 100x100mm

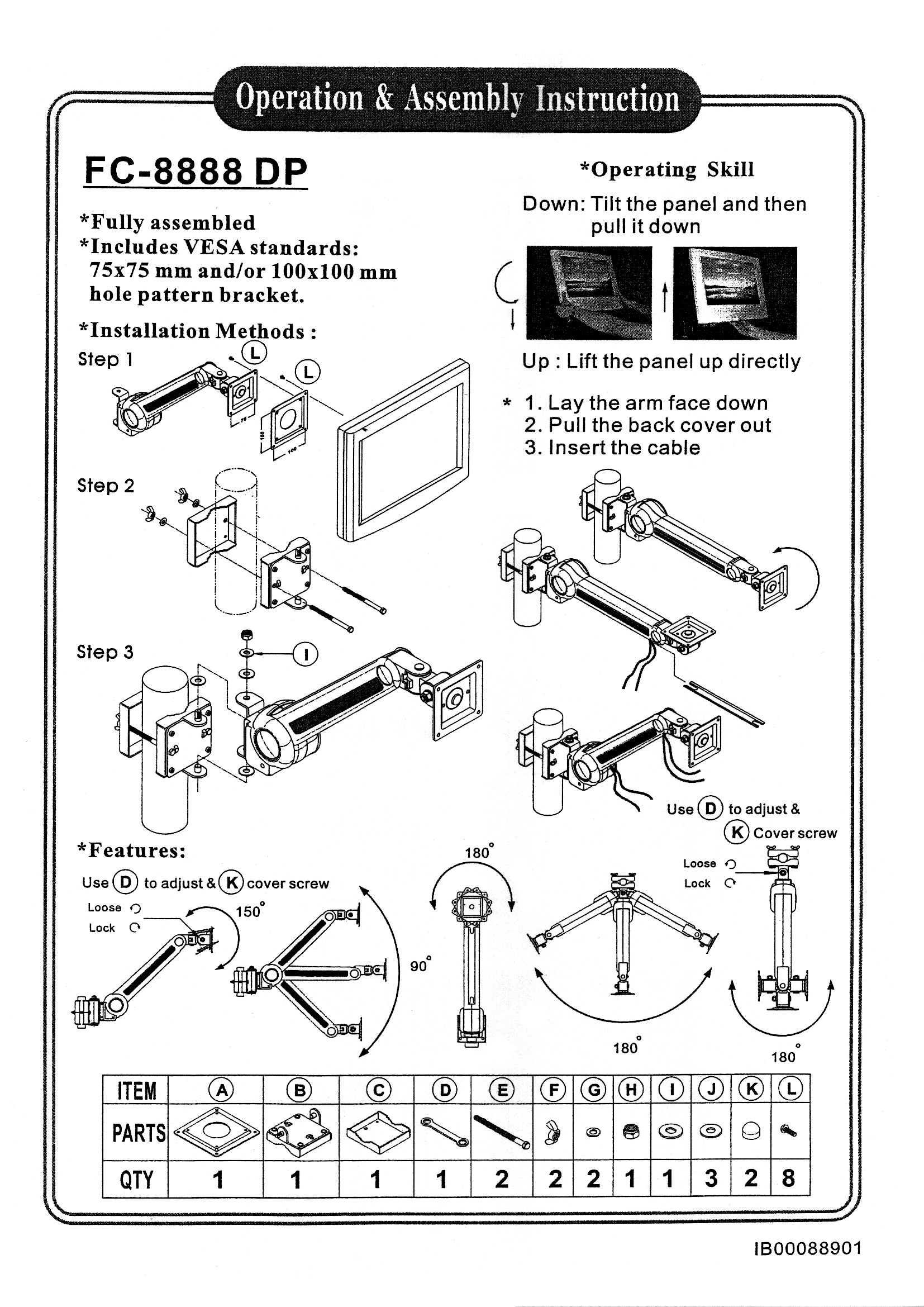

Lines FC-8888DP LCD pole mount Lines FC-8888DP

LCD size: up to 27"

Max load: 10kg

VESA: 75x75, 100x100mm

LED/ LCD Monitor Ceiling Mount bracket Top of page Top
Lines FC-8888SLS Lines FC-8888SLS

LCD size: up to 27"

Pole length: 0.5-1m

Max load: 15kg

VESA: 75x75, 100x100mm

Lines FC-8888SL Lines FC-8888SL

LCD size: up to 27"

Pole length: 1-2m

Max load: 15kg

VESA: 75x75, 100x100mm

LED/ LCD Monitor Partition mount Top of page Top
Lines FC-8888SP Lines FC-8888SP

LCD size: up to 27"

Max load: 15kg

VESA: 75x75, 100x100mm

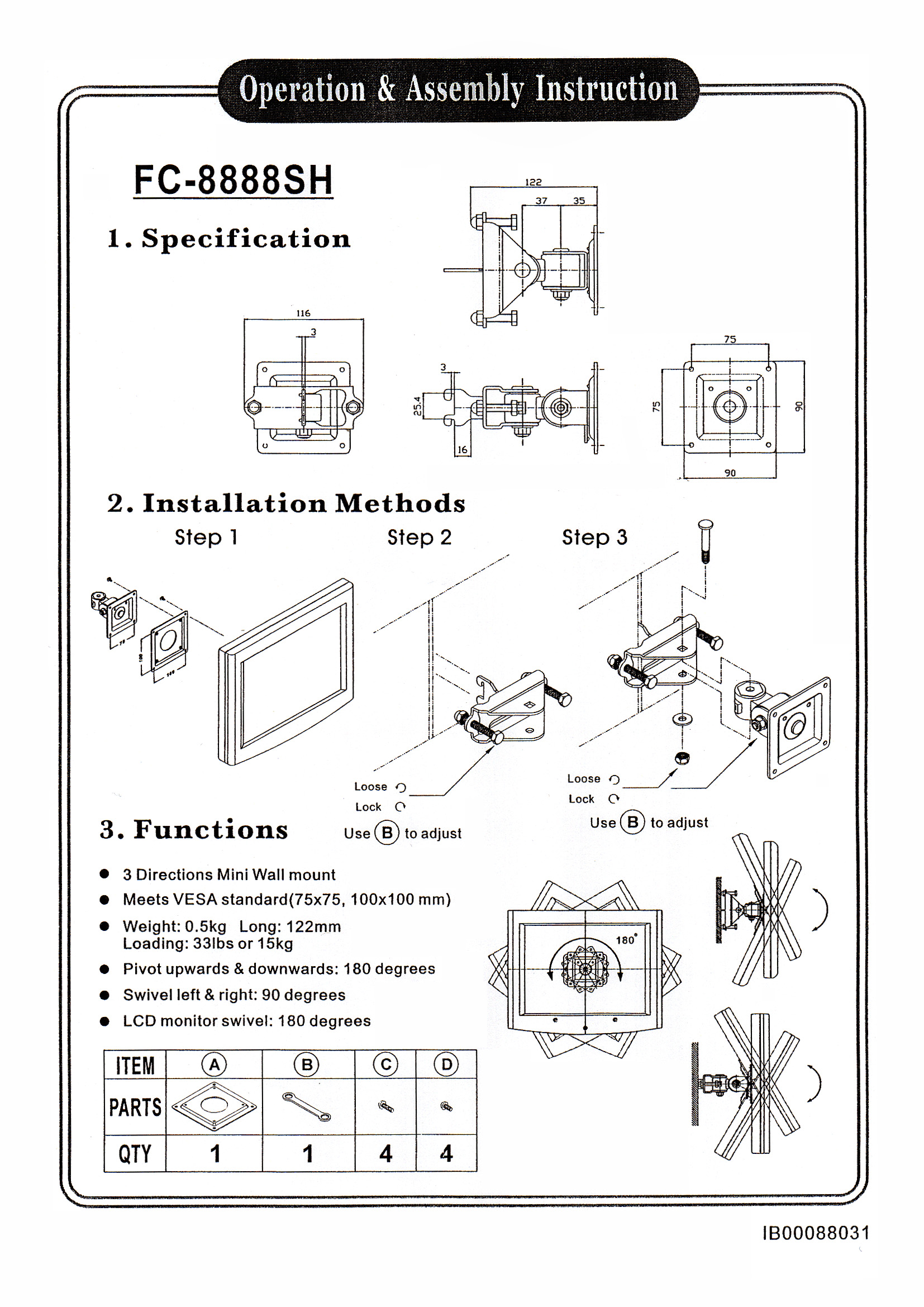

Image unavailable Lines FC-8888SH

LCD size: up to 27"

Max load: 15kg

VESA: 75x75, 100x100mm

Mobile Computer Workstations Top of page Top
Lines FC-300 Lines FC-300

Vertical computer stand with configurable accessories

LCD size: up to 27"

Max load: 100kg



Select with the complete set of accessories or customize your stand:

MR - Pole, base and wheels

MS - LCD panel arm

MC - CPU holder

MK - Keyboard arm

MT - Printer platform

MN - Speaker platform

ML - Power strip

Lines CN-H01 Hospital/ medicla care mobile rack Lines CN-H01

Hospital/ medical mobile rack

LCD size: up to 27"

Working desk, keyboard tray

Height adjustable

External CPU holder

Low-noise castor wheels

Cable management

LED/ LCD / Plasma TV Wall bracket Top of page Top
Fixed-angle TV wall bracket
Lines FC-A421 Lines FC-A421

Fits 26-37" TV

Max load: 70kg

VESA: 200x100, 200x200mm

Lines FC-A422 Lines FC-A422

Fits 26-42" TV

Max load: 100kg

VESA: 200x200, 300x200, 400x100, 400x200mm

Lines A660 Wall mounted bracket Lines A660

Fits 32"-70" TV

Max load: 80kg

Horizontal mount: 4-70cm

Vertical mount: 6-50cm


TV Wall bracket with monitor tilt* or tilt / rotation
Lines HT-F2020 Lines HTF2020

Fits 22-37" TV

Max load: 60kg

VESA: 100x100, 200x100, 200x200mm

Lines FC-A630 Lines FC-A630

Fits 38-60" TV

Max load: 60kg

Horizontal mount: 35-66cm

Vertical mount: 20-40cm

360 degrees monitor rotation

Lines A650 Wall mounted bracket Lines A650*

Fits 32"-70" TV

Max load: 80kg

Horizontal mount: 4-69cm

Vertical mount: 6-50cm

Tilt angle: 20 degrees

Monitor cannot be rotated


TV Wall bracket with arm
Lines FC-A871 Lines FC-A875

Fits 21-37" TV

Max load: 32kg

VESA: 75x75, 100x100, 200x100, 200x200mm

Lines AR212A Lines AR212A

Fits 24-37" LED TV

Max load: 25kg

VESA: 75x75, 100x100, 200x100, 200x200mm

Lines AE444 52" TV wall mount Lines AE444

Fits 24-47" LED TV (35kg max)
Max wall mount hole pitch: 400x400mm

Distance to wall: 3.5cm (min) / 36cm (max)

Lines HTAR240 Lines HTAR240

Fits 26-65" LED TV
Max wall mount hole pitch: 400x400mm
Max load: 35kg

Lines FC-A771B Lines FC-A771B

Fits 32-60" LED TV

Max load: 70kg

Horizontal mount: 4-69cm

Vertical mount: 6-50cm

Lines HTA4041 42" TV wall mount Lines HTA4041

Fits 32-60" LED TV
Max wall mount hole pitch: 400x400mm
Max load: 50kg

Distance to wall: 10.5cm (min) / 55cm (max)

Lines HTA6041 52" TV wall mount Lines HTA6041

Fits 32-70" LED TV
Max wall mount hole pitch: 660x400mm
Max load: 50kg

Distance to wall: 10.5cm (min) / 55cm (max)


LED/ LCD / Plasma TV Ceiling Mount Bracket Top of page Top
Lines Ceiling mount bracket for TV (0.5-1m) 8888SLS + FCA421P Lines 8888SLS + FCA421P

Fits 24 - 32" TV

Max load: 32kg

VESA mounting: 75x75, 100x100, 200x100, 200x200mm

Pole height: 0.5-1m

Lines Ceiling mount bracket for TV (1-2m) 8888SL + FCA421P Lines 8888SL + FCA421P

Fits 24 - 32" TV

Max load: 32kg

VESA mounting: 75x75, 100x100, 200x100, 200x200mm

Pole height: 1-2m

Lines HTDF2020.pdf Lines HTDF2020

TV size: 22" - 37 ", 60kg max

100x100, 200x100, 200x200

Pole height: 92-142cm

Lines FC-A171 Lines FC-A171

LED TV size: 32-60"

Max load: 60kg

Horizontal mount: 4-69cm

Vertical mount: 6-50cm

Lines HTDF6540/1 Ceiling mount bracket for 1 TV Lines HTDF6540/1

LED TV: 32" - 65" (60kg max)

Horizontal mount: 5-72cm

Vertical mount: 45cm (max)

Height adjustable: 924-1424mm in 50mm increments

5 tilt angles (0,5,10,13,15 deg.)

Lines HTDF6540/2 Ceiling mount bracket Lines HTDF6540/2

Fits 2 x LED TV back-to-back

TV size: 32" - 65", 2 x 60kg max
Horizontal mount: 5-72cm

Vertical mount: 45cm (max)

Height adjustable: 924-1424mm in 50mm increments

Lines R1720 Extender pipe Lines R1720

Pole extender

Extends pole length of HTDF6540/1 and HTDF6540/2 from 924-1424mm to 1500-2000mm


TV Mobile Stand Top of page Top
Lines FC-A330 Lines FC-A330 / FC-A330G

Entertainment TV stand on wheels

Option of 2 x wood (FC-A330) or

2 x glass shelves (FC-A330G)

Fits 32-60" LED TV

Max load: 80kg

Max mounting dimensions:

70cm (horizontal.), 50cm (vert.)

Lines FC-A390 Lines FC-A390

Entertainment TV stand on wheels

1 wood MDF shelf

Fits 60-105" LED TV

Max load: 100kg

Max mounting dimensions:

400-800mm (horizontal.)

200, 300, 400, 500mm (vertical)

Projector Brackets Top of page Top
Lines PL320 Ceiling Projector Mount Lines PL320

Ceiling mount

Max load: 15kg

Mounting diameter: 325mm

Swivel: 360 degrees
Tilt angle: +/- 25 degrees

Adjustable height range:

402 ~ 577mm (25mm increment)

Lines PL955 Ceiling projector mount extender pipe Lines PL955

Pole extender

Extends PL320 pole length to 755-955mm

Laptop brackets Top of page Top
Lines A510 Lines A510

Desk c-clamp

Max load: 10kg

VESA: 75x75, 100x100mm

Lines A511 Lines A511

Wall bracket

Max load: 10kg

VESA: 75x75, 100x100mm

Lines A512 Lines A512

Table swivel stand

Max load: 20kg

VESA: 75x75, 100x100mm



Lines FC-A890 Table C-clamp for laptop Lines FC-A890

Desk c-clamp

Max load: 8kg



Lines AON01 Notebook tray for VESA 100x100mm bracket Lines AON01

Notebook tray for VESA 100x100mm bracket

MAx load: 5.5kg




Tablets / iPad / Kindle Table C-Clamp Top of page Top
HTIPC200 iPad Table C-clamp Lines HTIPC200

Table C-clamp tablet for iPad / Kindle and 9-11" screen devices

With arm rotation, adjustible tilt, security lock, kensington lock


Computer and Telephone Brackets Top of page Top
Lines FC-2150 Lines FC-2150

Keyboard drawer

Base swivel: 360 degrees

Max height adjustment: 16cm

Platform tilt: 15 to -20 degrees

Lines FC-666 Lines FC-666

CPU holder

Width: 19-24cm

Max height adjustment: 48cm

Mounted under desk

Lines FC-200 Lines FC-200

Swiveling armrest & mousepad

Desk C-clamp

Arm rest swivel: 360 degrees

Up-down & left-right adjustment

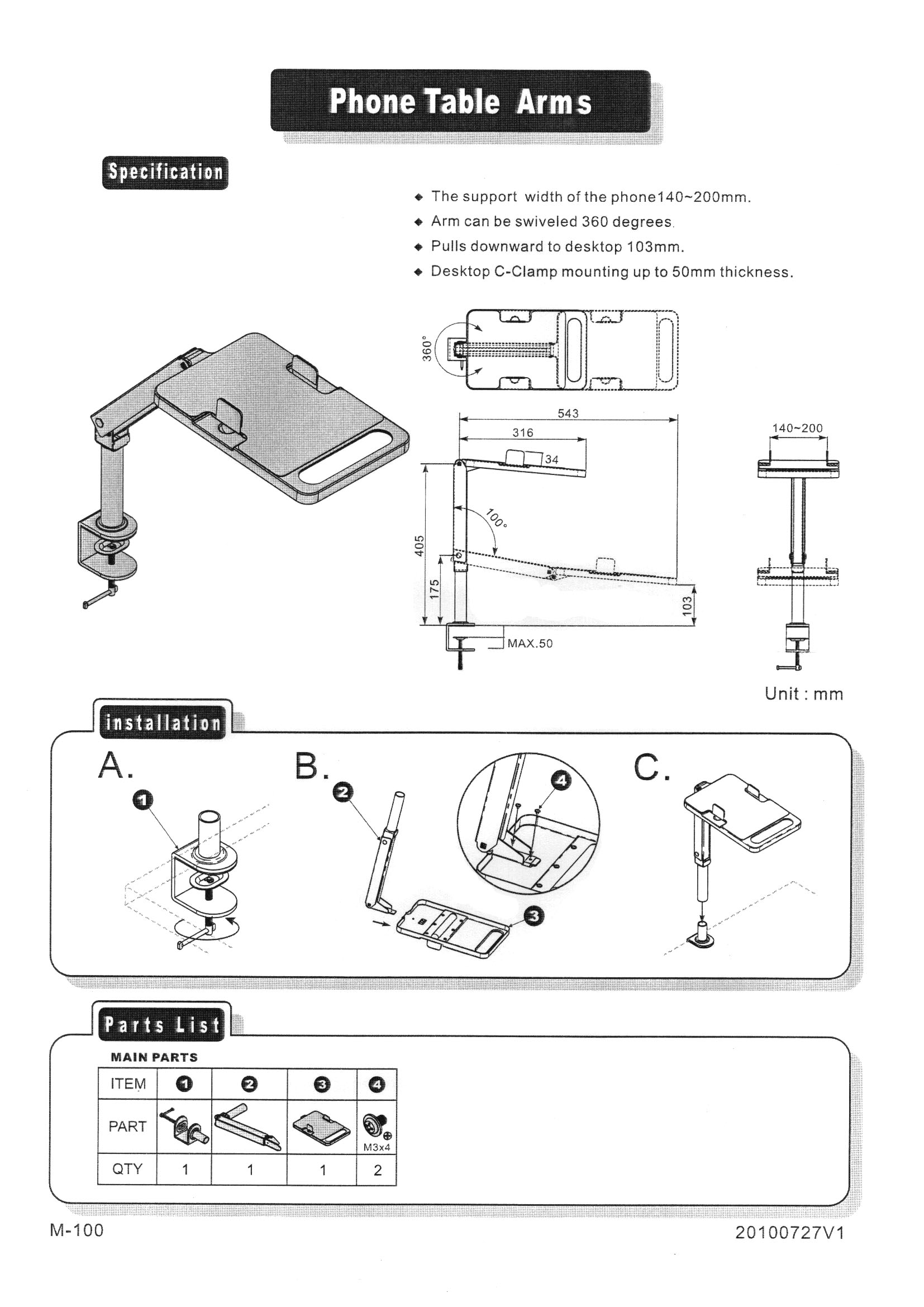

Lines FC-M100 telephone table arm c-clamp Lines FC-M100

Telephone c-clamp desk mount

(up to 50mm table thickness)

Supports phone width between 140-200mm

360 degrees swivel arm

Phone can be pulled downwards towards table (103mm)

Bracket Adaptors Top of page Top
Lines AOA22 Bracket adaptor Lines AOA22

VESA adaptor

Converts hole pitch from 200x100 to 200x200mm

Lines AOA22 Bracket adaptor Lines AOA23

VESA adaptor

Converts hole pitch from 100x100 to 200x100mm and 200x200mm

Safety Top of page Top
Lines JYXH6900 illuminated LED safety light Lines JYXH6900

Illuminated LED security light

Indoor / outdoor use

Multifunction and versatile LED security light that can be used as a work light, auto inspection light, or emergency light



Contact Us
